LG 48V Li-ion E-Battery for Electric Bikes (Various Motor Power up to 1500W)

Warranty and Support

• One-month return policy, 1-year warranty, and lifetime technical support.
• Quality assurance. : – 12 months for battery repair or replacement if damaged within the warranty period.
• How to contact us. : –
  • Go to Account & Lists → Orders → Get help with order → Send email (enter your information).
  • We’re committed to responsive service within 24 hours.

Size and Specifications

• Battery type. : – LG 4800mAh cells
• Chemistry. : – 48V, 19.2Ah nominal (approx. 921.6Wh)

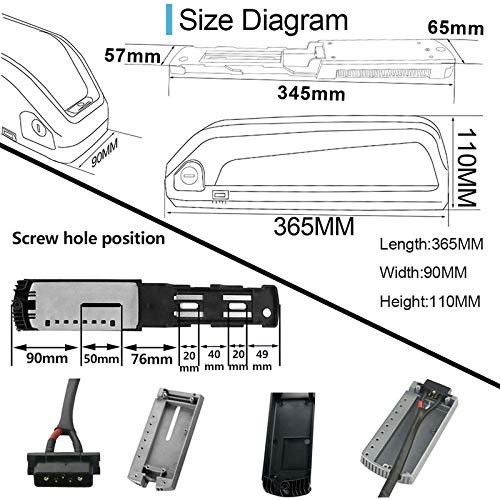

• Battery case size. : – 14.4 x 3.5 x 3.5 inches

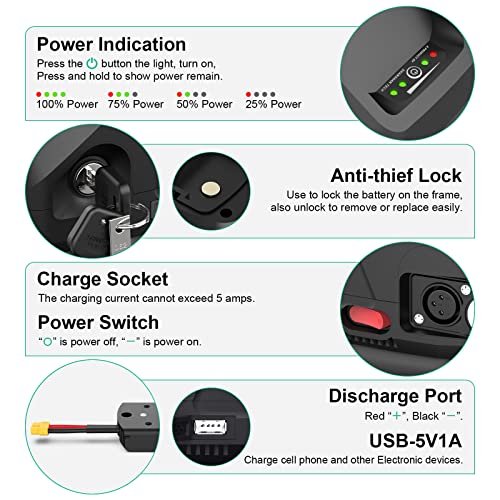

• Power switch. : – On/Off button
• BMS. : – 40A maximum continuous discharge
• Charger. : – 54.6V, 2A

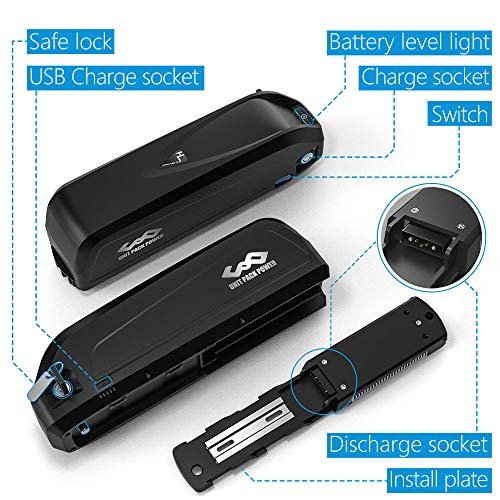

• Discharge connector. : – XT60 (male & female)

Compatibility and Mounting

• Suitable for a wide range of motors. : – 250W, 300W, 350W, 500W, 750W, 1000W, 1200W, 1500W (50W–1500W range)
• Battery base designed to fit most bike frames
• Locking mount with keys prevents theft

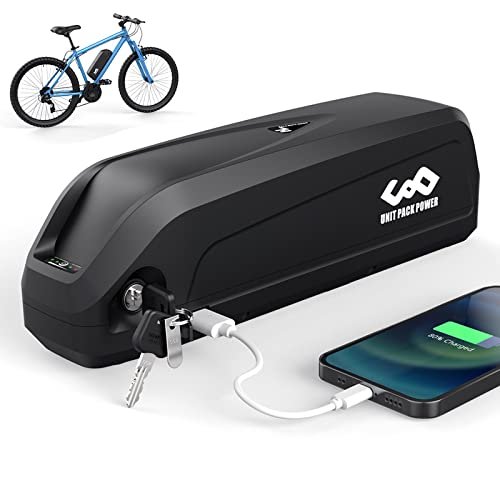

• USB output for charging devices on the go
• Battery LED indicator to show charge status

Usage and Safety

• Ensure connector and voltage match your motor. : –
  • Check your motor voltage (36V, 48V, or 52V)
  • Confirm motor power to choose a compatible battery capacity (AH)
  • Verify the discharge socket matches your motor (the link’s sockets are 5-pin)

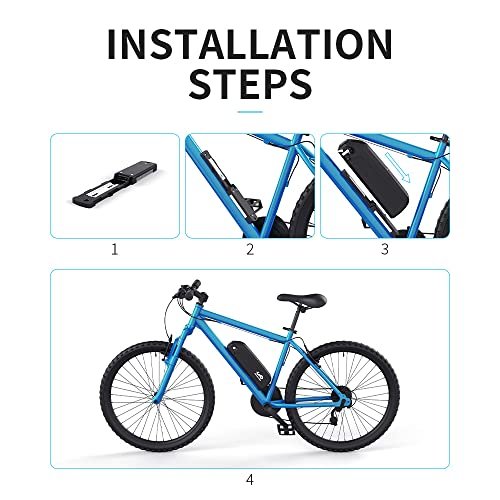

• Installation position. : – Battery box typically fits on the down tube; verify dimensions and mounting space on your frame
• For best performance, pair with a controller that supports your battery’s voltage and current rating

Capacity and Longevity

• Expected capacity after cycles. : – ≥80% of rated capacity after 800 cycles (subject to usage and charging habits)
• Battery life. : – High-quality cells designed for long life; supported by UL/CE/FC/ROHS-style safety certifications per our sourcing standards
