BAFANG BBS02B 48V 750W Ebike Conversion Kit : Mid Drive Electric Bike Motor with Display & Battery (Optional) for Mountain Bicycle Road Bicycles Commuter Bikes - Image 1

Click to enlarge

BAFANG BBS02B 48V 750W Ebike Conversion Kit : Mid Drive Electric Bike Motor with Display & Battery (Optional) for Mountain Bicycle Road Bicycles Commuter Bikes

$274.45

Brand	BAFANG
Voltage	48 Volts
Horsepower	750 Watts
Item Weight	6.46 Kilograms
Manufacturer	BAFANG

Add $200.00 to cart and get free shipping!

Add to wishlist

Description
Reviews (0)

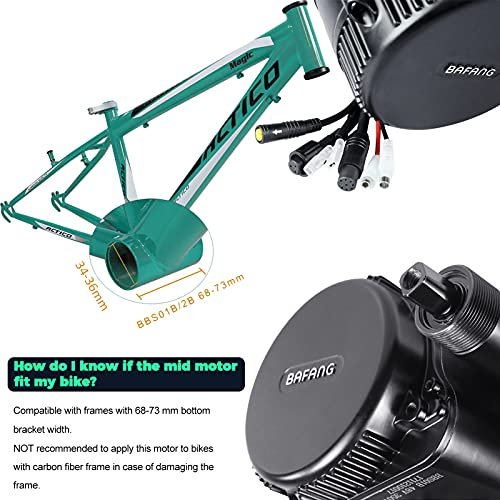

WIDE COMPATIBILITY FOR MOST BIKES. : – BAFANG BBS02B mid drive kit is compatible with 68-73mm ( length ) and 33.5-36mm (internal diameter ) JIS standard bottom bracket . This versatile kit can be installed on various bike types, including MTB mountain bikes , city & commuter bikes ,among others. We do not recommend mounting it on bikes equipped with coaster brakes

POWERFUL BIKE MOTOR KIT. : – The BAFANG BBS02 offers a maximum torque of 120 N.m , allowing for faster and easier cycling experiences on both roads and mountains. With a top speed of 50KMH (27.5″ bike), this kit greatly enhances your daily life, especially for older individuals. It features 3 riding modes. : – Electric Bike (Thumb Throttle Mode), Pedal Assist, and Normal Bike

EASY INSTALLATION. : – A manual is included . In case you still have any confusion or questions, please reach out to us. If you are unsure whether the kit is compatible with your bike , please inform or utilize our [Compatibility Guide testing cutouts

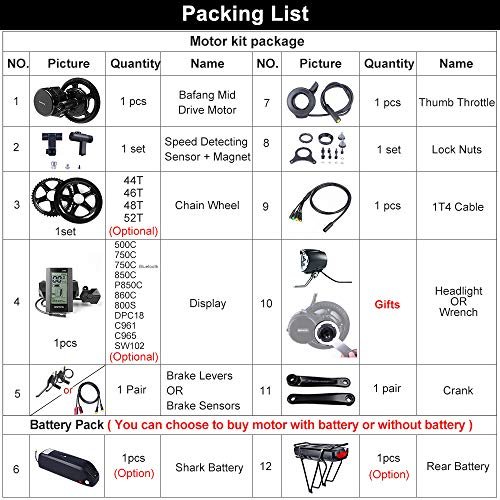

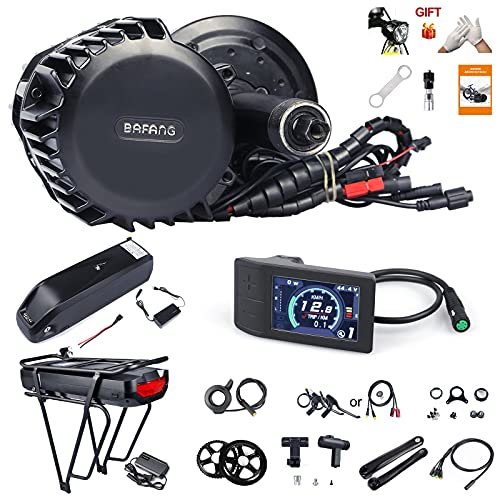

PACKING LIST. : – A 750W motor , a battery (if you order it together), a display , a chainring with guard ( 36T chainring is without guard ), speed sensor , brake levers or brake sensors (if you prefer brake sensors, kindly send your order ID), cranks , a 1T4 EB-BUS cable , a thumb throttle , lock nuts , wrench and crank removal tool , headlight

Local & Fast & Responsible. : – In the event of any inventory issues, we will promptly notify you, so please keep an eye on your Amazon inbox. Our team of professional technicians based in the USA is available to provide you with technical support whenever needed. Our customer service is consistently responsible and patient, ensuring a worry-free post-sales experience

BAFANG 48V 750W Mid Mount Electric Bike Conversion Kit for 68-73mm Bottom Bracket . Designed for bikes with a 68-73mm bottom bracket , it is equipped with screws and nuts specifically for a 73mm bottom bracket. If you are looking for a 750W motor kit for 100mm bottom bracket , please search B099Z8Y6QN on Amazon and order it.

Specification for BAFANG BBS02B Mid Drive Kit
Volatage. : – 48V
Wattage. : – 750W
Motor Type. : – Brushless Geared Motor
Bafang Motor Model. : – BBS02B
Bafang Motor Position. : – Mid Crank
Bafang Controller. : – Integrated, inside the Motor
Shaft Standard. : – JIS
Operating Temperature. : – -10-45℃
Display (optional). : – 500C/B02N EKD01 BLE/750C BLE//P860C/DPC18/Touch T1/C961/800S/DM03/DZ40
Chainwheel. : – 36T/42T/44T/46T/52T (36T 42T chainring is without chain guard)

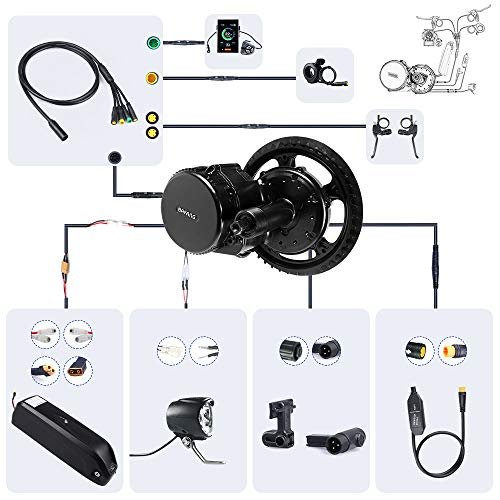

Packing List BAFANG Mid Drive Motor ( with Integrated Controller )

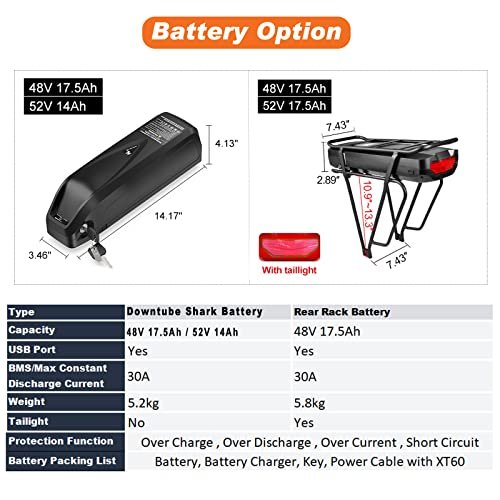

Battery (optional)– Shark Battery with Charger ( Bike Frame/Downtube Battery ). : – 48V 13Ah/17.5Ah/20Ah
– Rear Battery with Charger ( Rear rack is included ). : – 48V 17.5Ah
Display (optional)
Brake Lever (Default) OR Brake Sensors
Thumb Throttle
Chainwheel
Cranks
Speed Sensor & Magnets
1T4 Wireness (EB-BUS Waterproof Cable)
Lock Nuts *1 set
Manual
Headlight, Wrench, Crank removal tool , Extension Cable, 250W Stickers, Bolt and Gaskets for BB73mm

FAQ. : –

1. What kind of bike is compatible with this motor
—-The BBS02 mid drive motor is suitable for bikes with a 68-73mm bottom bracket.

2. How can I switch the brake levers to brake sensors
—- Please provide us with your order number and we will ship you the requested brake sensors.

3.If you would like to modify any specifications, such as a chainring with a different size or a display not listed, please get in touch with us, and we will be happy to assist you.
