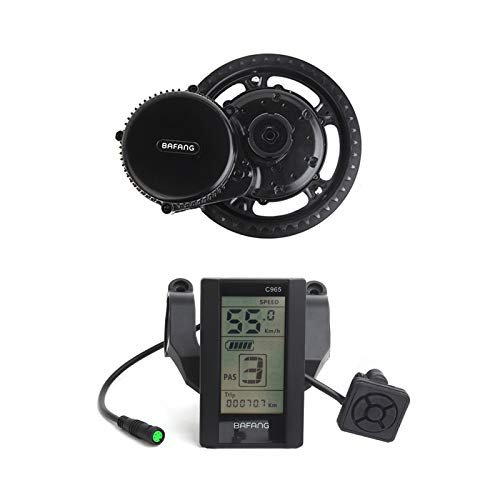

BAFANG 48V 750W Mid Drive Electric Bike Conversion Kit with HMI Display BBS02B 8FUN Mid Motor for Bike Kit with 48V Ebike Battery
$254.51
| Bike Type | Electric Bike |
| Brand | BAFANG |
| Color | C965 Display |
| Special Feature | Electric |
| Included Components | Electric Bike, Charger |
| Size | Chainwheel 44T & No Battery |
| Item Weight | 6.5 Kilograms |
| UPC | 779296258463 |
| Manufacturer | Bafang |
Purchase Note. : –

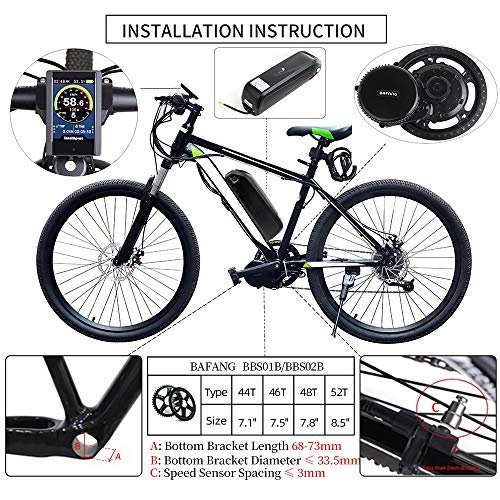

Fit for the Bike Bottom Bracket 68 – 73mm.
The Inner Diamater of the bracket not less than 33.5mm.
8 pcs gaskets in the parcel help to fit Bottom Bracket 73mm.

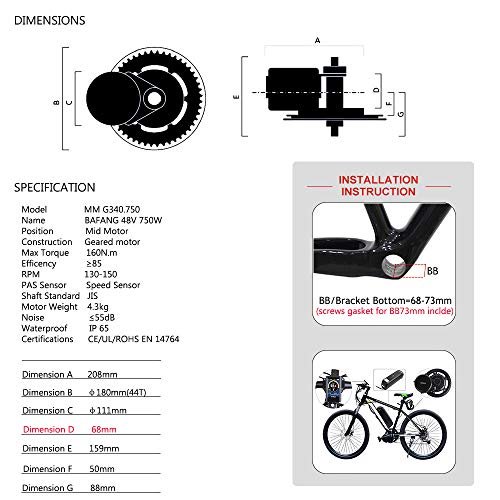

Motor Specification. : –
Watts. : – 750W Volts. : – 48V
Controller Current. : – 25A
No Load Speed(RPM) . : – 140-160
Load Speed(RPM). : – 120-135
MAX Torque. : – 160 N.m
Efficiency > 85%
PAS. : – Speed Sensor
Reduction Ratio. : – 1. : – 21.9
Centification. : – CE/EN 14764/ROHS
Waterproof Grade. : – IP65
Net Motor Weight. : – 4.24kg
Motor Kits Weight. : – 5.6-6.0kg
Bracket bottom length. : – 68mm- 73mm
Motor Operation Temperature. : – -20℃-45℃
Max speed. : – 52km/h ( 75Kg Load, 44T, Different work condition different speed)
Speed within 25-30km/h can help you ride farther.
48V 12Ah/14.5Ah/17.5Ah Hailong Battery Specifications. : –
Battery Cell. : – Samsung 29ET 2900mah 52PCS/Samsung 29ET
2900mah 65PCS/Samsung 35ET 3500mah 65PCS
Array mode. : – 13s4p/13s4p/13s5p
Battery size. : – 367.2*90.1*111mm
Battery Weight. : – 4.1KG/4.4KG/4.4KG
Max Constant Discharge Current. : – 30A
Current Limits. : – 25Ah/25Ah/30Ah
Fit for. : – Bafang 48V 500W 750W 1000W Hub Motor and Mid motor
Charge voltage. : – 54.6V
Discharge cut off voltage. : – 36.4V
Way of Charge. : – CC/CV
Cycle Life. : – 2000 times
Charge/Discharge Temperature. : – -15-65℃
Protection Function. : – Over charge, Over discharge, Over current, Short circuit, Balance.

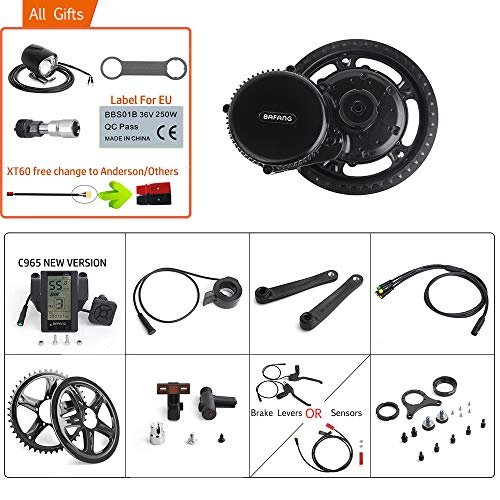

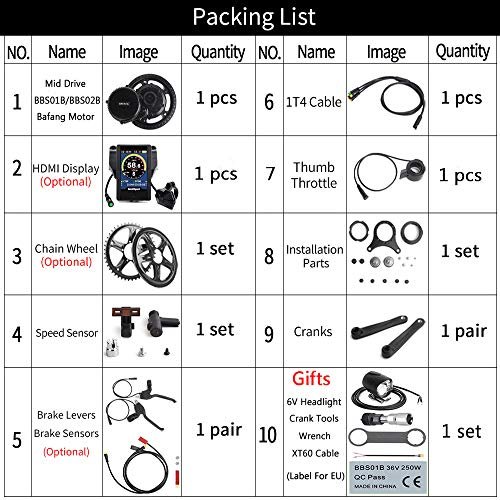

Packing list. : –
BBS02B 48V 750W Mid Drive Motor * 1 pcs
Speed Detecting Sensor + Magnet * 1 set
Chain Wheel. : – 44T 46T 48T 52T (optional)

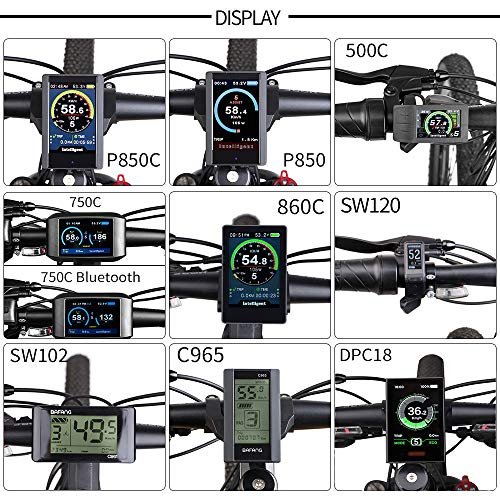

Display * 1 DPC18 750C 8520C P850C C965 C961 SW102 500C
750CBluetooth( works on IOS 9.3.5+ systems on iPhone)
Brake Lever * 1 Pair ( change to Hydraulic Brake Sensor freely)
Thumb Throttle * 1 pcs
Installation Screws and Nuts * 1 set
1T4 Cable *1 pcs
Crank* 1 pair
Gifts. : – A headlight Wrench + Removal Tool + XT60 cable 1 set
Gaskets * 8 Pcs For Bottom Bracket 73mm.
