48V 20Ah Li-Ion Battery Pack with 30A BMS

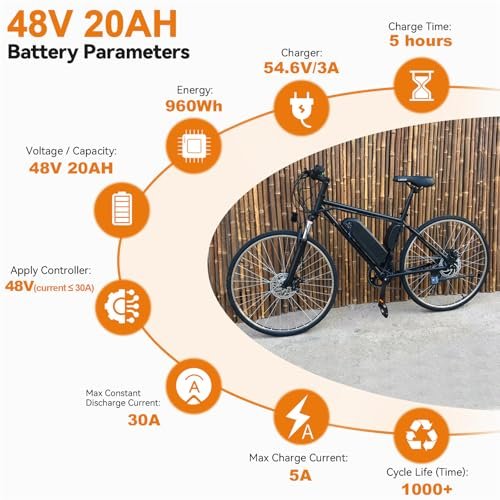

Clear Parameters

• Battery. : – 48V 20Ah with 30A BMS (max constant discharge 30A)
• Suitability. : – 48V controller and motors 1000W/750W/500W (range 100W–1000W)

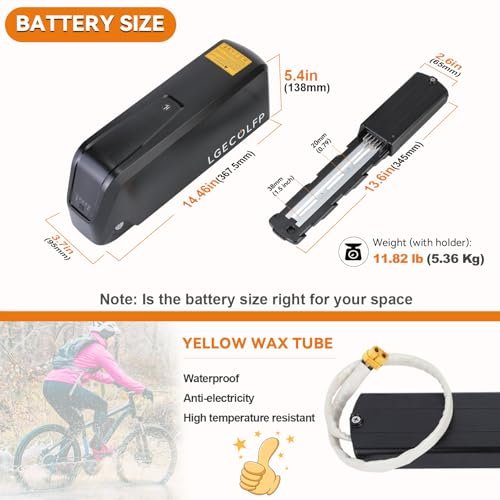

• Size. : – L 14.46″ × W 3.7″ × H 5.4″
• Weight. : – ~11.82 lbs
• Charger. : – 54.6V 3A fast charger
• Cable. : – Discharge connector is Female XT60
• Cycle life. : – >1000 charge-discharge cycles

Why Choose 48V 20Ah Battery

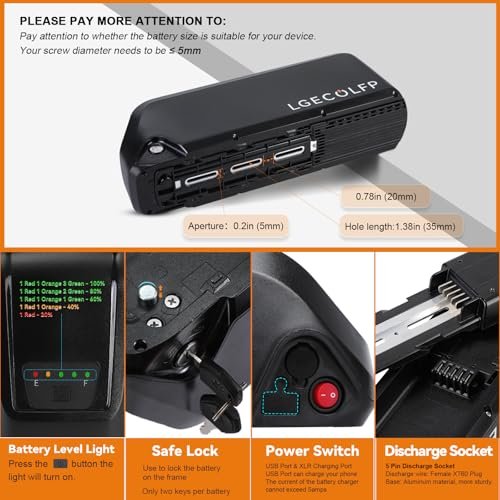

• Safe Lock. : – Anti-theft function
• LED Power Indicator. : – Real-time battery level
• Power Switch. : – Reduces power loss
• USB Port. : – Charge your phone
• 30A BMS. : – Protective, safer operation
• Waterproof case. : – Protects internal cells
• Anti-vibration pads. : – Pre-attached to battery base for protection
• 5-pin discharge socket. : – Easy installation with battery base
• Discharge wire. : – Yellow wax-tube insulation for waterproofing, heat resistance

Compatibility Check (How to know if this battery fits)

• Controller voltage. : – 48V
• Controller rated current. : – ≤ 30A
• Motor wattage. : – 250W–1000W
• Confirm battery dimensions fit your frame and mount

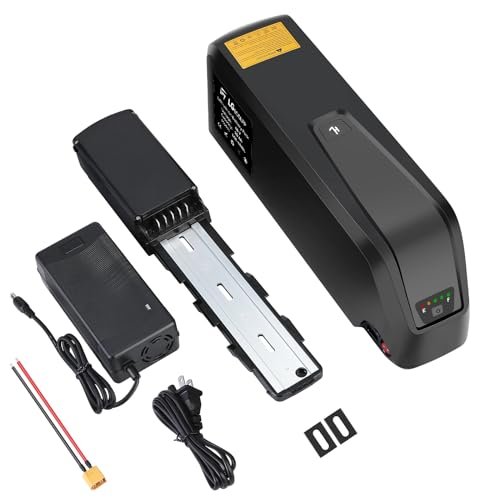

Package Contents

• 1 × 48V 20Ah Battery
• 1 × 3A Fast Charger
• 1 × 5-pin battery holder
• 1 × Male XT60 connector
• 2 × Keys
• 2 × Anti-vibration pads
• 1 × User manual

Note. : – 30A BMS provides safety, but ensure your system current draw does not exceed this rating.

After-Sales and Warranty

• 3 months free returns or replacements
• 12 months warranty
• If there are issues (damaged package, not arrived, battery fault, incorrect size, charger issues, etc.), contact us immediately and we will respond within 24 hours
• US-based support and fast response time
